Single shaft shredder
Single shaft shredder
  • Single shaft shredder
  • Single shaft shredder
  • Single shaft shredder
  • Single shaft shredder
  • Single shaft shredder

Single shaft shredder

Item No.: single shaft shredder-01
In order to meet the requirements for recycling the waste materials which are usually hard to be crushed and having a high output, KWELL designs WT series heavy single shaft plastic shredder, which is used for shredding various kinds of big plastic block
Request Quote
Application:
Single shaft shredder is mainly used in all kinds of hollow or solid plastic material. The shredder machine is suitable to PE, PP, PET, ABS, PVC and engineering plastics..

Single shaft plastic shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.

This plastic shredder machine has the advantages of stable running lower noise and big torque.The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.

Product Features:
1. Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material;
2. PLC control system with automatic overload protection;
3. Unique hydraulic pushing system accelerates the shredding speed, for light material particularly;

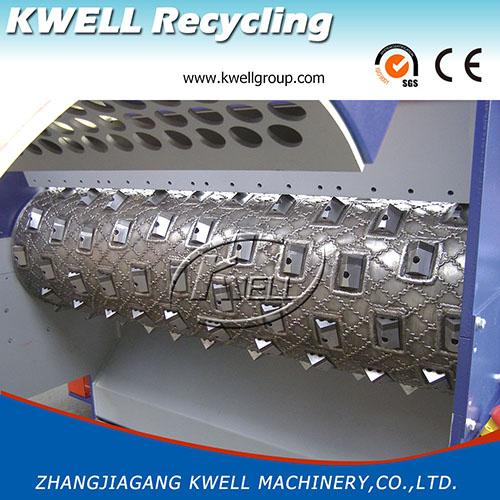

4. Each dynamic(rotary) blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree;
5. Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree;
6. Quiet operation at low speed;
7. Screen mesh is adjustable according to customers' requirement;
8. The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

Technical Parameter:
Model Power(KW) Rotary blades
(PCS)
Rotating Diameter (mm) Shredder Chamber Size (mm) Capacity(kg/h)
WT300 5.5 20 Φ150 300*300 50-100
WT400 11 22 Φ220 400*500 100-200
WT500 18.5 28 Φ250 500*550 200-300
WT600 22 33 Φ280 600*680 300-400
WT800 37/45 51 Φ350 860*960 500-1000
WT1000 55 63 Φ350 1100*1150 800-1500
WT1200 75 69 Φ400 1200*1400 1800-2500
WT1400 110 95 Φ550 1400*1480 2000-3000
Dennis McGuire
May 28, 2020
I am interested in the price for the WT400.
Colleen
Aug 28, 2019
Hi I was wondering if you could give me more information on the WT300 shredder. What size motor? Single or 3 phase power? suitable for use in Australia? What is it's torque? Also cost? Thanks Colleen
Baltic recycling solution UAB, Rolandas Alekna
Nov 09, 2017
Hello, I would like to ask you prices for shredders WT800 and WT1000 with delivery to Lithuania ( EU) Thanks in advance
